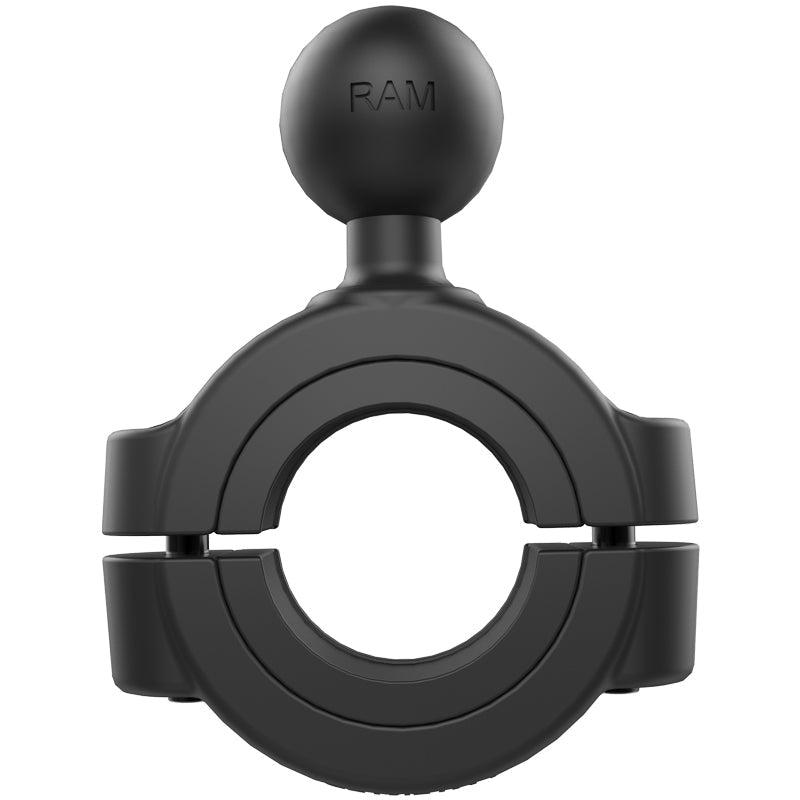

Ram Torque Large Rail Base – B Size | RAM-B-408-112-15U
The large version of the RAM® Torque™ handlebar mounting base features a 1″ B size RAM® rubber ball and is compatible with rails 1 1/8” to 1 1/2″ in diameter. Sizing inserts are included to provide a tight fit while also protecting the mounting surface. The large RAM® Torque™ mounting base also includes nylon-insert lock nuts to prevent loosening in high vibration environments.
- Handlebar mounting base with B size 1″ rubber ball accommodates rails 1 1/8″ to 1 1/2″ in diameter
- Includes sizing inserts to provide a tight fit while protecting the mounting surface; mount includes nylon-insert locknuts to prevent loosening
- Made of powder-coated, marine-grade aluminum for durability and reliability in the most demanding environments
- Backed by a lifetime warranty

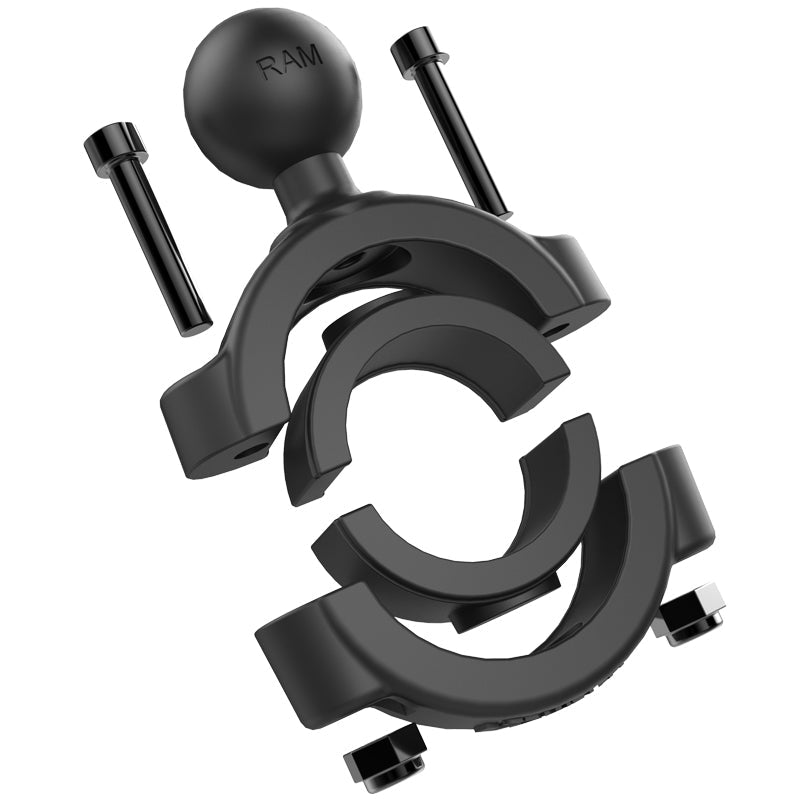

HARDWARE INCLUDED
(2) #10-24 x 1″ Socket Head Cap Screws
(2) #10-24 Nylock Nuts
(2) 1.12″ Split Reducing Bushings
(2) 1.27″ Split Reducing Bushings
(1) 5/32″ Hex Key Wrench
(1) 127mm x 17mm Rubber Adhesive Strip
CLAMP RANGE
1.125″ – 1.5″ diameter
BALL SIZE
B Size (1″)
WEIGHT CAPACITY
Standard Use: 2 lbs
Heavy-Duty Use: 1 lb
MATERIALS
Marine-grade aluminum
