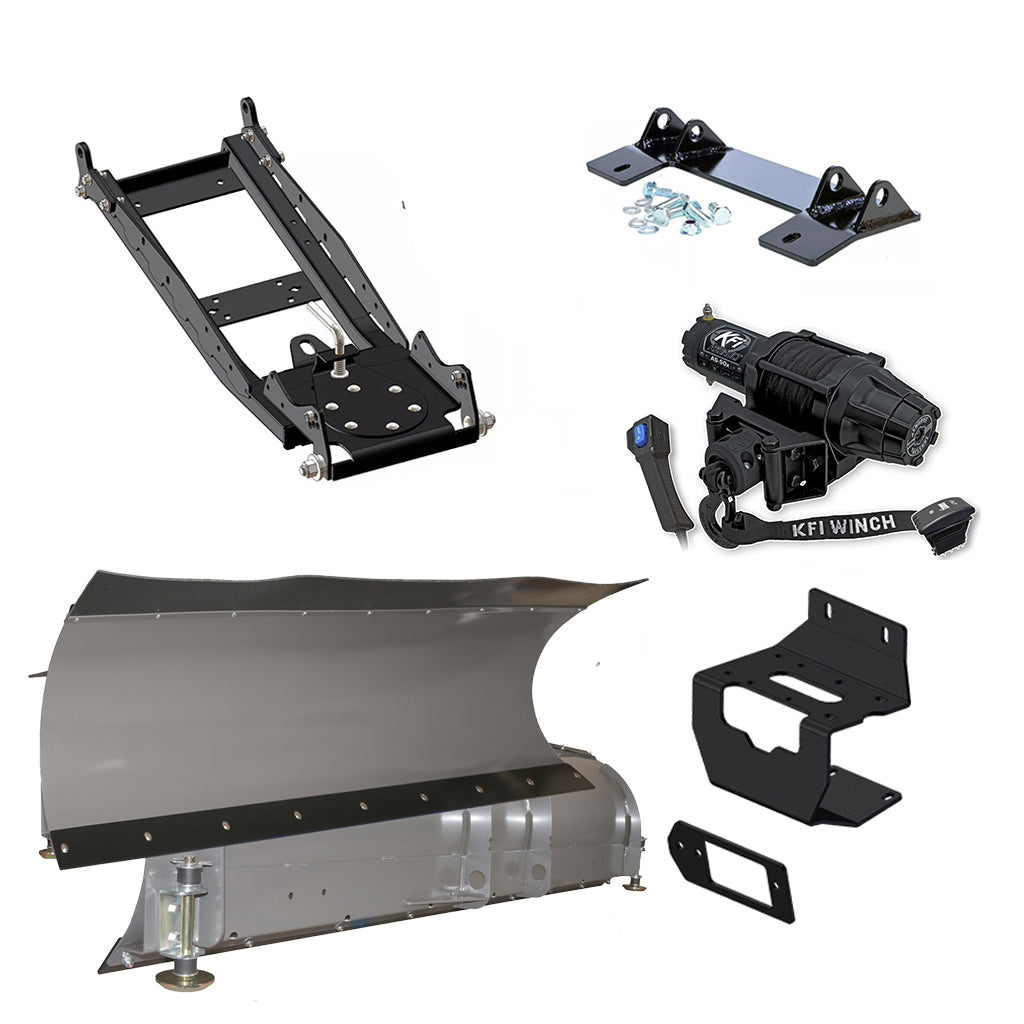

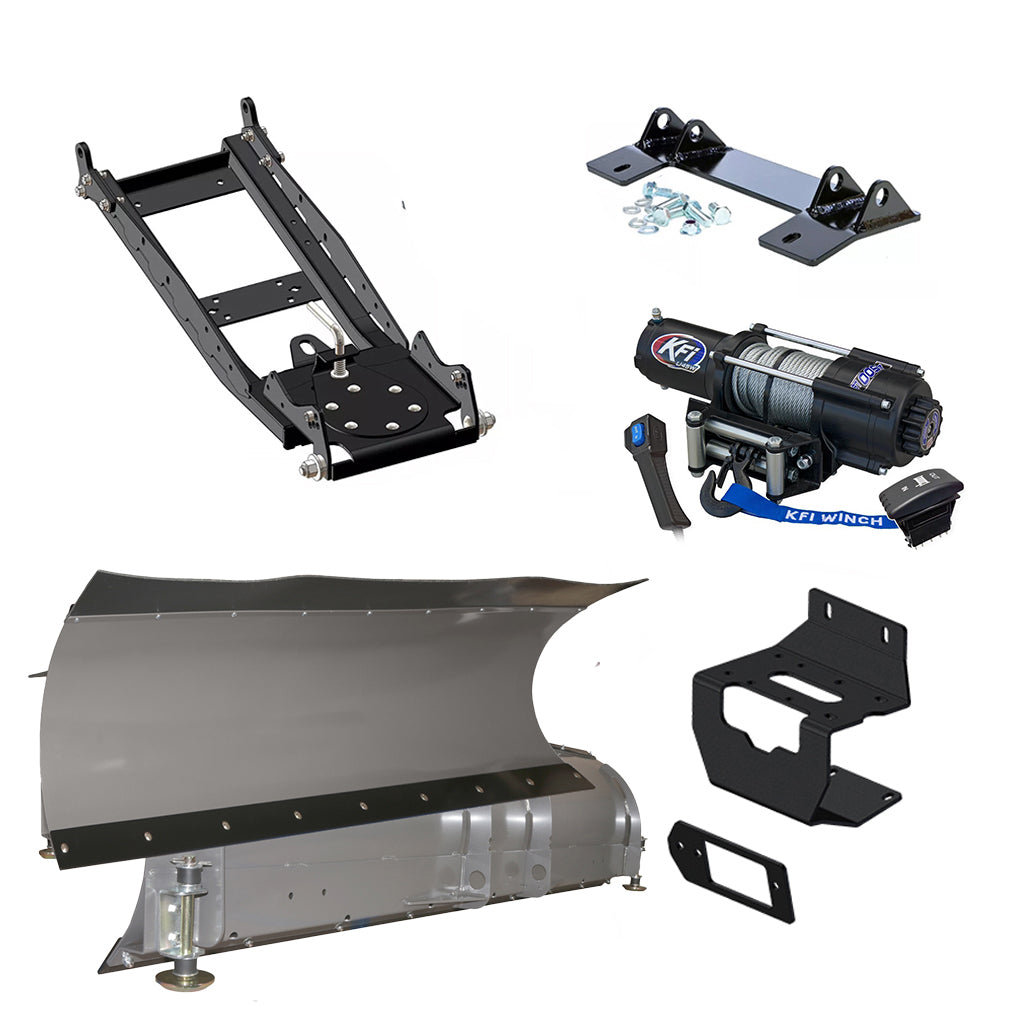

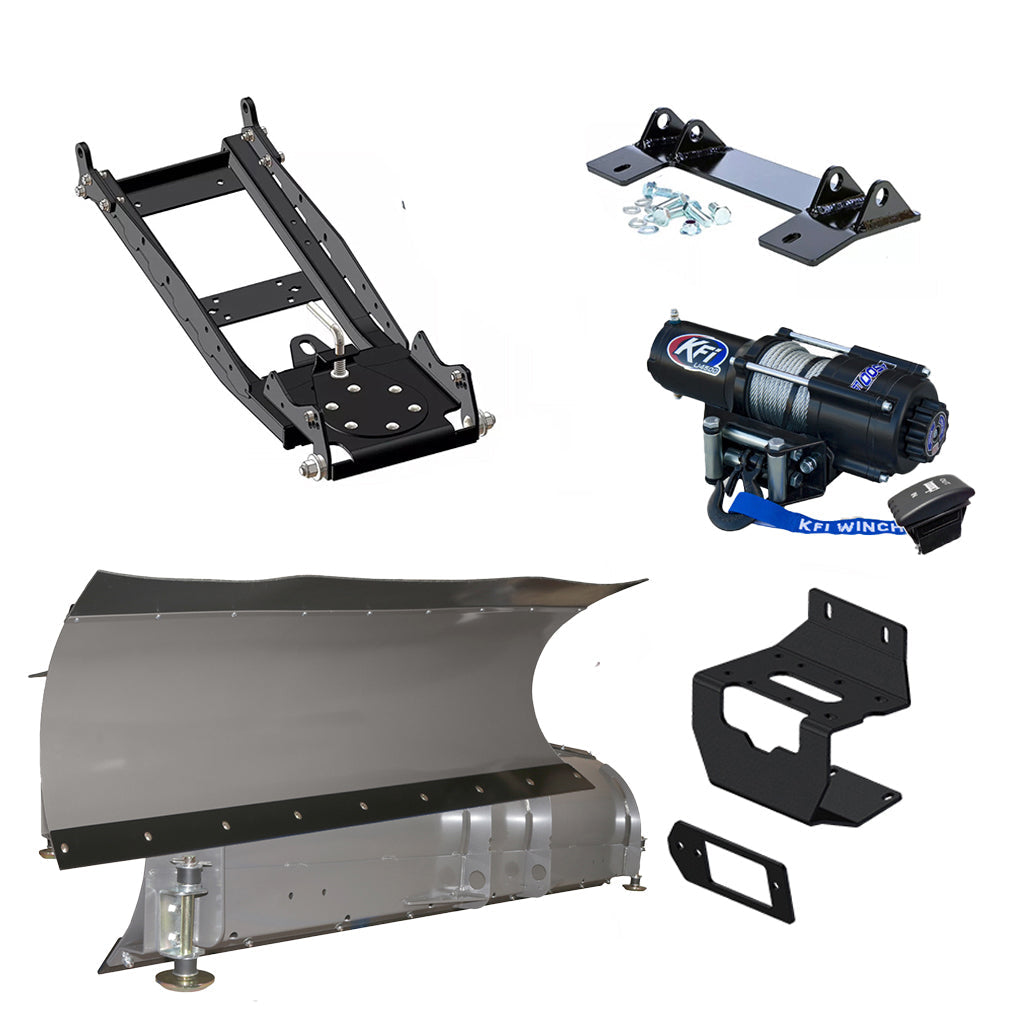

KFI Snowplow Kit Polaris Ranger 425-700
Plow Mount Installation Instructions
Straight Blade Specifications:
100% MADE IN USA
Pushes snow straight ahead or to the sides up to 25 degrees
Added gussets for the wider width
The 66″ & 72″ blades only include a 7″ high 2-ply top rubber flap
Measures 16 inches Vertical blade face height with an approximate 21 inches height with snow flap
Fully-adjustable blade skids with bolt-on brackets
Heavy duty 3″-diameter grade-50 steel skid plates
Blade Constructed of 11 ga steel
3/16″ Grade 50 Ribbing for a strong bolt-up to the Swivel Tube
Unlike all other Plow competitors our Plows are metal bead blasted before they are powder coated Metallic Silver for supreme durability
2-Sided 3/16″ x 3.00″ Grade 50 Steel Wear Bar
Wear Bar attached with Heavy Duty Grade 8 Bolts
2-Year KFI Warranty
Poly Blade Specifications:
Includes a 7″ high 2-ply top rubber flap
100% MADE IN USA
Dual Curvature face for supreme snow moving
Measures 21 inch Vertical blade face height with an approximate 27 inch height with snow flap
Fully-adjustable blade skids with bolt-on brackets
Heavy duty 3″-diameter grade-50 steel skid plates
Flexible Heavy Duty Black Poly face
3/16 inch Grade 50 Steel Rib and Frame construction
Unlike all other Plow competitors our Plows are metal bead blasted before they are Powder Coated Black for supreme durability
2-Sided 3/16″ x 3.00″ Grade 50 Steel Wear Bar
Wear Bar attached with Heavy Duty Grade 8 Bolts
Complete installation instructions included
Works with KFI UTV Tubes
Includes Plow Markers
2-Year KFI Warranty
KFI Winch Details
Any winch selection will also receive a model-specific winch mount. Click links below to view winch specific details.
U4500 / U4500W 4,500lb Winch, Steel Cable
AS-50s / AS50wx 5,000 lb Winch, Synthetic Cable
Fitment:
Polaris Ranger 425 (2001-2004)
Polaris Ranger 500 2×4 (2001-2008)
Polaris Ranger 500 (2003-2008)
Polaris Ranger 500 6×6 (2002-2005)
Polaris Ranger 700 (2005-2008)
Polaris Ranger 700 6×6 (2006-2009)
Polaris Ranger Crew 700 (2008-2009)
Polaris Ranger TM (2004-2006)
Polaris Ranger XP 700 (2008)
Special Note:
Requires Stock Bumper
May Require Drilling
