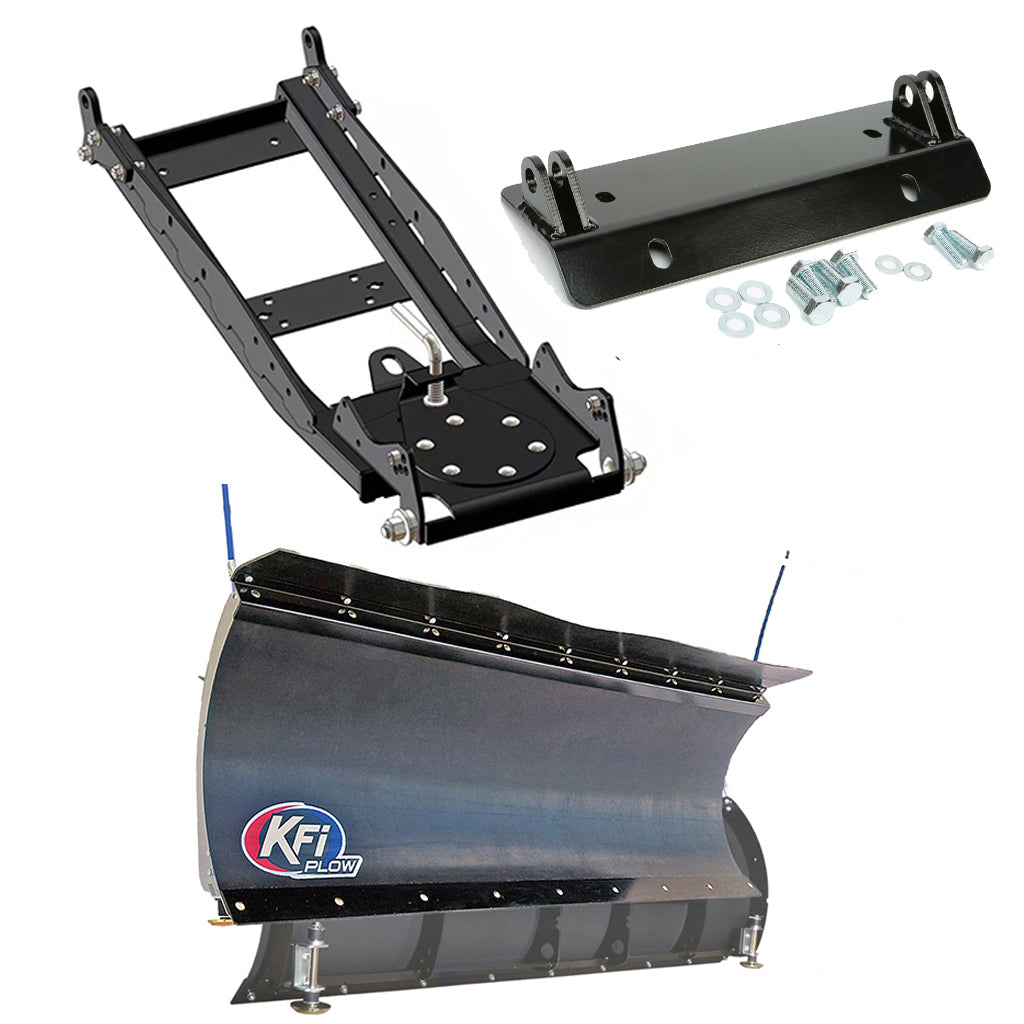

KFI Snowplow Kit Bennche Bighorn 500 & 700 / Coleman Outfitter 500 & 700 / Cub Cadet Challenger 500 700 750 / Massimo MSU 500, 700, 700 4
Plow Mount Installation Instructions
FITS:
Bennche Bighorn 500 (2011-2016)
Bennche Bighorn 700 (2011-2016)
Coleman Outfitter 500 (All Years)
Coleman Outfitter 700 (All Years)
Cub Cadet Challenger 500 (All Years)
Cub Cadet Challenger 700 (All Years)
Cub Cadet Challenger 750 Crew (All Years)
Massimo MSU-500 (All Years)
Massimo MSU-700 (All Years)
Massimo MSU-700 4 (All Years)
Straight Blade Specifications:
100% MADE IN USA
Pushes snow straight ahead or to the sides up to 25 degrees
Added gussets for the wider width
The 66″ & 72″ blades only include a 7″ high 2-ply top rubber flap
Measures 16 inches Vertical blade face height with an approximate 21 inches height with snow flap
Fully-adjustable blade skids with bolt-on brackets
Heavy duty 3″-diameter grade-50 steel skid plates
Blade Constructed of 11 ga steel
3/16″ Grade 50 Ribbing for a strong bolt-up to the Swivel Tube
Unlike all other Plow competitors our Plows are metal bead blasted before they are powder coated Metallic Silver for supreme durability
2-Sided 3/16″ x 3.00″ Grade 50 Steel Wear Bar
Wear Bar attached with Heavy Duty Grade 8 Bolts
2-Year KFI Warranty
Poly Blade Specifications:
Includes a 7″ high 2-ply top rubber flap
100% MADE IN USA
Dual Curvature face for supreme snow moving
Measures 21 inch Vertical blade face height with an approximate 27 inch height with snow flap
Fully-adjustable blade skids with bolt-on brackets
Heavy duty 3″-diameter grade-50 steel skid plates
Flexible Heavy Duty Black Poly face
3/16 inch Grade 50 Steel Rib and Frame construction
Unlike all other Plow competitors our Plows are metal bead blasted before they are Powder Coated Black for supreme durability
2-Sided 3/16″ x 3.00″ Grade 50 Steel Wear Bar
Wear Bar attached with Heavy Duty Grade 8 Bolts
Complete installation instructions included
Works with KFI UTV Tubes
Includes Plow Markers
2-Year KFI Warranty
KFI Winch Details
Any winch selection will also receive a model-specific winch mount. Click links below to view winch specific details.
U4500 / U4500w 4,500lb Winch, Steel Cable
AS-50x / AS50wx 5,000 lb Winch, Synthetic Cable
