Empi 22-3027 Vw Bug Ball Joint Front Disc Brake Kit, 5 Lug Porsche/5 Lug Vw Pattern
Empi 22-3027 Bolt-On Front Disc Brake Kit For Spindle To Spindle Complete Assembled Axle Beams. Finish Your 1966 Thru 1977 Vw Bug Or Ghia With This Bolt-On Disc Brake Kit.
Calipers Bolt Directly To The Disc Brake Spindles. Designed For EMPI’s Beam in A Box P/N 22-3112-0, 22-3116-0 and 22-3118-0
Includes:

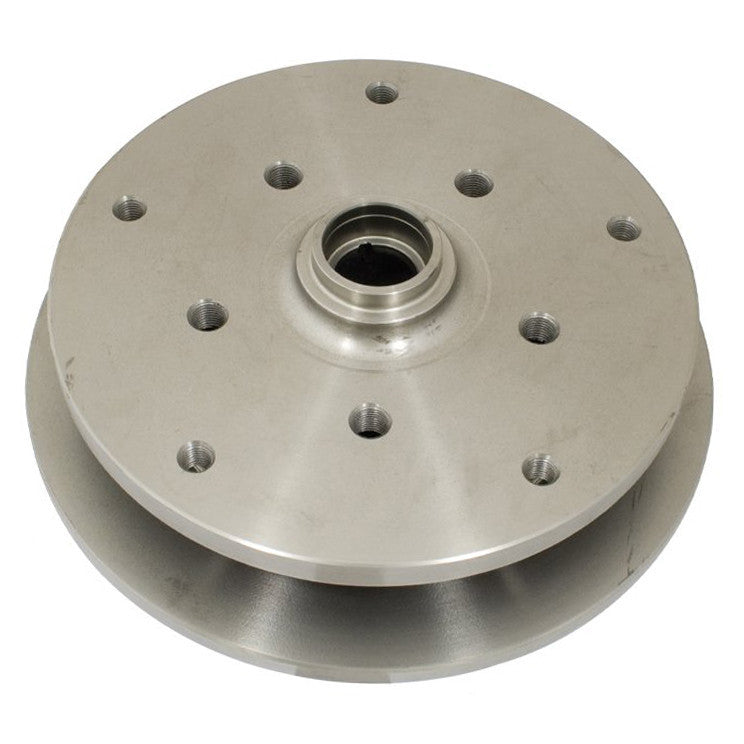

Double Drilled 5 Lug X 130mm Porsche Lug Bolt Pattern (14mm X 1.5 Threads)
Double Drilled 5 Lug X 205mm Vw Lug Bolt Pattern (12mm X 1.5 Threads)
Disc Brake Calipers With Pads
Wheel Bearings, Seals, And Required Installation Hardware
Thrust Washers & Spindle Nuts (Clamp Style)
Brake Hoses
Application:
Volkswagen Type 1 Bug 1966 Thru 1977 With Disc Brake Type Spindles (Does Not Fit Super Beetle)
Volkswagen Karmann Ghia 1966 Thru 1974 With Disc Brake Type Spindles
Note:
All Bearing Races Must Be Pressed Into Rotors
This Kit Is For Vw Type 1 Ball Joint Vehicles With Disc Brake Type Spindles
WILL NOT WORK ON SUPER BEETLES
WILL NOT WORK ON DROPPED SPINDLES
Use DOT3 Brake Fluid Only
Warning: It Is Extremely Important That Brake Kits & Brake Lines Be Installed By A Trained Mechanic. Proper Length Of Each Line In Relation To Wheel Travel And Steering Angle Is Critical To Avoid Brake Failure. Equally Important Is Brake Lines Must Be Free Flowing And Have No Contamination. Additionally, All Calipers Must Be Bled Properly, Regardless Of Kit Purchased. Do Not Attempt Brake Line Or Caliper Installation Without The Experience To Properly Evaluate All these Issues.
